Supermicro SC946S – 60 Top-load Hot-swap 3.5″/2.5″ HDDs in 4U

The new 4U JBOD extreme capacity storage chassis (SC946SE1C/E2C-R1K66JBOD) supports up to 60x 3.5″/2.5″ 12TB HDDs for 720TB of SAS3, 12Gb/s performance in an easily serviceable tool-less top-load hot-swap architecture. Chassis features double-slide rails with rear cable management arm for easy access to entire storage bay. HDD trays incorporate HDD LED indicator and tool-less lock/release clip. System is easily managed via 1x IPMI port with SNMP for Remote System Power on/off and system monitoring. Single / Dual expander backplane SKUs are available for simple storage expansion or failover redundancy requirement. Green Computing features include advanced cooling via 5x 80mm high speed, low vibration, hot-swappable fans and redundant hot-swap 1600W (1+1) Platinum Level high-efficiency (94%) digital power supplies. Optimized for virtualization, HPC extend storage, OpenCloud, OpenStack, High Density Archiving Storage, Streaming Storage, Cloud Backup, Data Replication, Compliance Storage, Video streaming / Surveillance.

1. Extreme High Density and High Capacity Storage Chassis support 60 x 3.5″ Top Loading SAS/SATA 12Gb/s Hot Swapping HHD/SSD Bays
2. Tool-less HDD tray with HDD LED indicator
3. Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
4. 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
5. 1x IPMI port for Remote System Power on/off and system monitoring
6. Support NTP for time synchronization & RTC battery backup
7. 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies

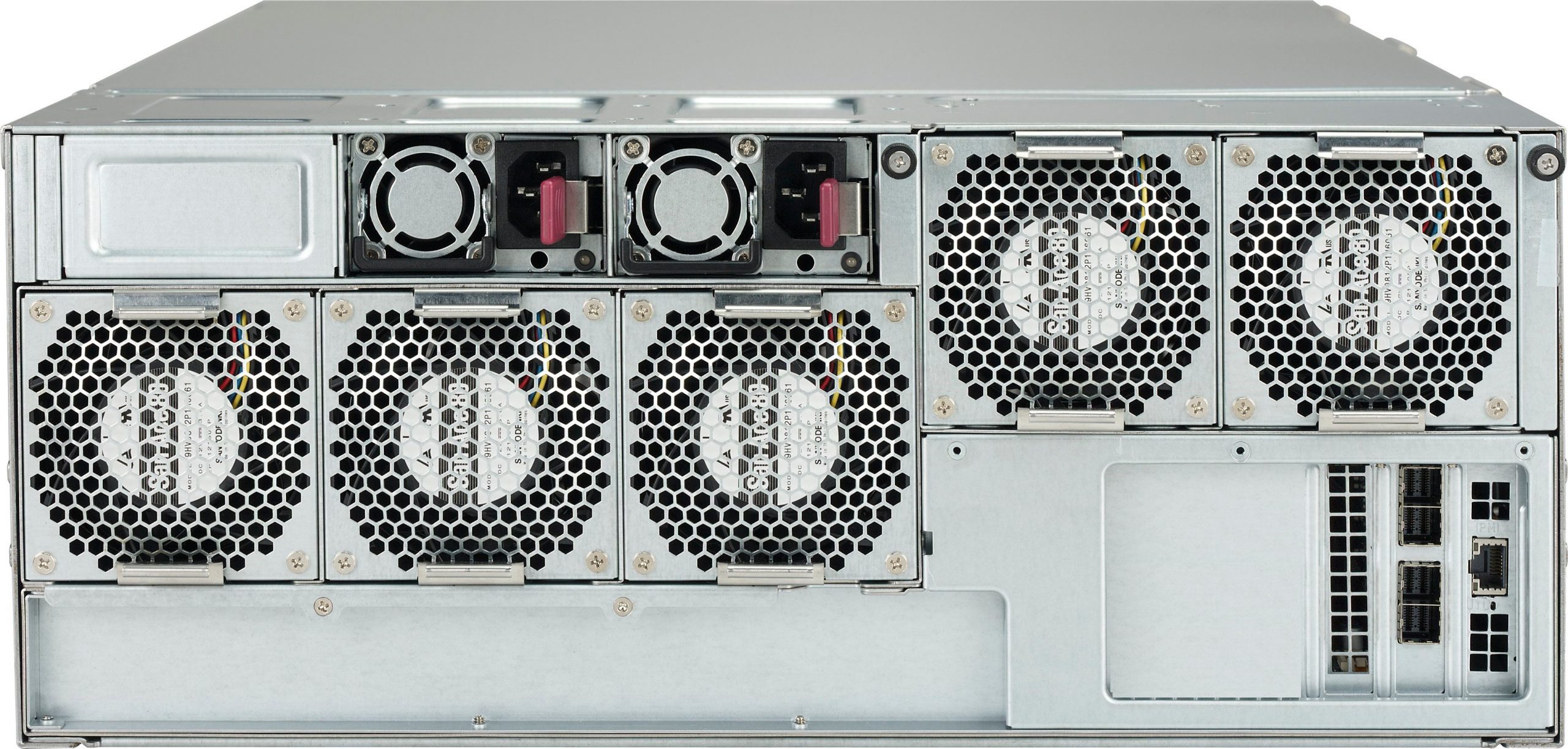

8. Optimized cooling w/ 5x 80x38mm rear hot-swap fans
9. Support front LCD panel for system status & error info (Option)
10. Ideal for Cloud backup, data Replication or High density Archive Storage Applications
