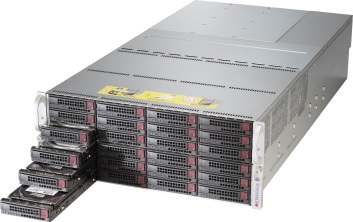

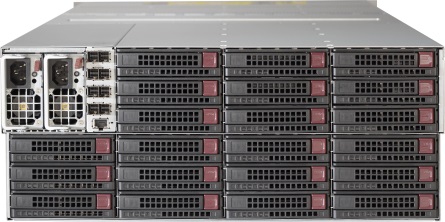

Supermicro 847DE1C-R2K04JBOD – 90 Hot-swap 3.5″ HDDs in 4U

Optimized for enterprise-level high-capacity storage applications, Supermicro’s SC847D Chassis features 90x 3.5″ SAS3/SAS2/SATA3 HDDs in 45x (24 front + 21 rear) Hot-swap Drive Bays as server chassis in a 4U space. Or 90x 3.5″ SAS3/SAS2/SATA3 HDDs in 45x (24 front + 21 rear) Hot-swap Drive Bays as JBOD chassis in a 4U space. The SC847D design offers extra high-density of HDD per space ratio in a 4U form factor, high power efficiency, optimized HDD signal trace routing and improved HDD tray design to dampen HDD vibrations and maximize performance. Equipped with redundant high-efficiency 1280W (2+1) (Platinum Level, 95% efficiency) or 2000W (1+1) power supplies with PMBus functionality and I²C for enhanced power management, and 7 hot-plug redundant cooling fans, the SC847D is a reliable and hassle-free maintenance storage system.

Cloud Backup, Data Replication, or High Density Archive Storage Applications

1. 4U High Density Storage JBOD Chassis with capacity 90 x 3.5″ hot-swappable HDDs in 45 drive bays
2. Single Expander Board and Front/Rear Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
3. 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
4. 1x IPMI port for Remote System Power on/off
5. Support NTP for time synchronization
6. 2000W (1+1) 96% efficient Titanium level power supplies
7. 7 x 92mm high efficient hot-swappable fans for best system cooling
8. Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
