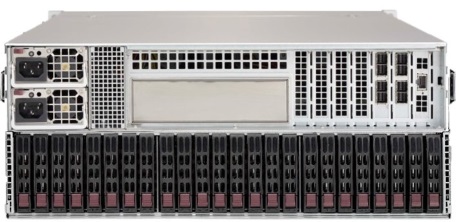

The SC417B chassis features extremely high storage density with 72x (48 front + 24 rear) hot-swap 2.5″ SAS3/SAS2/SATA3 hard drive bays as server chassis or maximum of 88x (48 front + 40 rear) hot-swap 2.5″ SAS2/SATA3 hard drive bays as JBOD chassis in a 4U space. The chassis also feature with redundant high-efficiency 1280W (1+1) (Platinum Level, 95% efficiency) and 7x 8cm hot-swap cooling fans. The SC417B series chassis is ideal for Archive, Streaming Storage, Cloud Backup, Data Replication, DB/File Server, Data Warehouse, Media/Stream Server, Video-on-Demand, Security Server, etc.
- Extremely high-density 4U storage server chassis (saves 2U space)
- Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5″ hot-swap HDD bays for server chassis
- SAS3 (12Gbps) single expander backplane
- 1200W Titanium Level (1+1) redundant power supplies with PMBus
- Optimized thermal solution with 100% redundant cooling design
