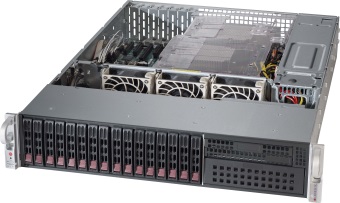

Supermicro’s SC213 chassis provides 16 hot-swap 2.5″ SAS/SATA hard drive bays, one 5.25″ hard drive, one optional slim DVD drive in an efficient 2U form factor designed for the most commonly encountered applications. The chassis is also equipped with redundant 900W high-efficiency and Gold Level 720W power supplies (with PMBus functionality and I²C for enhanced power management) for outstanding power savings, and specially designed optimized cooling.
- 2U chassis supports for maximum motherboard sizes – 13.68″ x 13″, E-ATX 12″ x 13″, ATX 12″ x 10″ motherboards
- 16 x 2.5″ hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 1 x 5.25″ drive bay
- 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
- 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
- 7 low-profile expansion slot(s)
- 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control
