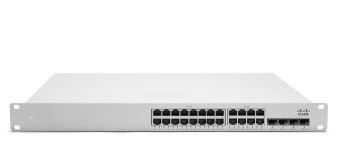

Meraki MS350-24X

Configurations

• 16 ports Gigabit Ethernet
• 8 ports 1000/2.5G/5G/10GbE MultiGigabit Ethernet
• 4 × SFP+ for 10G uplink, non-shared
• 160G Physical stacking
• MS350-24X includes 740 W PoE / PoE+ / UPoE (60W per port)

Hardware platform

• Voice and Video QoS
• Non-blocking switch fabric
• Hot-swappable power supplies and fans
• Ultra-reliable, includes lifetime warranty

Power over Ethernet

• 802.3af (PoE) 15.4 W per port
• 802.3at (PoE+) 30 W per port
• UPoE 60W per port
• Maximum PoE output: 740W
• Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management

• Visibility and control over thousands of ports
• Built-in multi site management
• Zero touch provisioning

Monitoring and diagnostics

• Cable failure testing
• Gateway connectivity testing
• Real time troubleshooting tools
• Email and text message alerts

Layer 3

• • Dynamic routing (OSPFv2) *
  • Static routing
  • DHCP Relay
  • DHCP Server
  • First of a kind UI-based configuration
  • Easy to configure routed interfaces
  • Warm spare redundancy (VRRP) *
  • DHCP Failover

• * OSPF and Warm Spare do not operate concurrently
