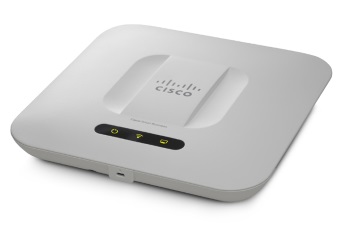

CISCO Small Business 500 Series

Categorie:

Cisco Small Business 500 Series Wireless Access Points

5 products shown

WAP581

WAP571

WAP571E

WAP561

WAP551

Expand all

General

Memory

Maximum installed RAM256 MB Maximum installed RAM256 MB Maximum installed RAM256 MB Maximum installed RAM64 MB Maximum installed RAM64 MB
Maximum installed flash memory128 MB Maximum installed flash memory128 MB Maximum installed flash memory128 MB Maximum installed flash memory32 MB Maximum installed flash memory32 MB

Networking

Form factorABS plastic Form factorABS plastic Form factorABS plastic Form factorABS plastic Form factorABS plastic
Connectivity technologyWireless-AC, Wave 2 Connectivity technologyWireless-AC Connectivity technologyWireless-AC Connectivity technologyWireless Connectivity technologyWireless
Data transfer rateUp to 2.8 Gbps Data transfer rate1300+600 Mbps Data transfer rate1300+600 Mbps Data transfer rate450 Mbps per radio Data transfer rateUp to 450 Mbps
Data link protocolIEEE 802.11a/b/g/n/ac Data link protocolIEEE 802.11a/b/g/n/ac Data link protocolIEEE 802.11a/b/g/n/ac Data link protocolIEEE 802.11a/b/g/n Data link protocolIEEE 802.11a/b/g/n
DFS supportYes DFS supportYes DFS supportYes DFS supportYes (E band only) DFS supportYes (E band only)
Spread spectrum methodOFDM, DSSS Spread spectrum methodOFDM, DSSS Spread spectrum methodOFDM, DSSS Spread spectrum methodOFDM, DSSS Spread spectrum methodOFDM, DSSS
Remote management protocolSNMPv3, HTTP, HTTPS Remote management protocolSNMPv3, HTTP, HTTPS Remote management protocolSNMPv3, HTTP, HTTPS Remote management protocolSNMP 1/2/3, HTTP, HTTPS, SSH Remote management protocolSNMP 1/2/3, HTTP, HTTPS, SSH
Network/transport protocolDHCP, Bonjour Network/transport protocolDHCP, Bonjour Network/transport protocolDHCP, Bonjour Network/transport protocolDHCP, Bonjour Network/transport protocolDHCP, Bonjour
Number of radios2 Number of radios2 Number of radios2 Number of radios2 Number of radios1
Frequency band2.4 GHz and 5 GHz Frequency band2.4 GHz and 5 GHz Frequency band2.4 GHz and 5 GHz Frequency band2.4 GHz and 5 GHz Frequency band2.4 GHz or 5 GHz
MIMO4×4 MU-MIMO (5 GHz); 3×3 MIMO (2.4 GHz) MIMO3×3:3 for 2.4 GHz and 5 GHz MIMO3×3:3 for 2.4 GHz and 5 GHz MIMO3×3 MIMO3×3
Maximum active WLAN clients64 per radio Maximum active WLAN clients64 per radio Maximum active WLAN clients64 per radio Maximum active WLAN clients64 per radio Maximum active WLAN clients64 per radio
APs supported per cluster16 APs supported per cluster16 APs supported per cluster16 APs supported per cluster16 APs supported per cluster16
Status indicatorsOne LED: Power, WLAN, LAN Status indicatorsOne LED: Power, WLAN, LAN Status indicatorsOne LED: Power, WLAN, LAN Status indicatorsPower, WLAN, LAN Status indicatorsPower, WLAN, LAN
FeaturesDHCP support, load balancing, VLAN support, syslog support, email alerts, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, access control list (ACL) support, quality of service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), multiple SSID support, wireless bridge mode, IPv4 support, rogue access point detection, captive portal, RF spectrum analysis, Single Point Setup FeaturesDHCP support, load balancing, VLAN support, syslog support, email alerts, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, access control list (ACL) support, quality of service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), multiple SSID support, wireless bridge mode, IPv4 support, rogue access point detection, captive portal, RF spectrum analysis, Single Point Setup FeaturesDHCP support, load balancing, VLAN support, syslog support, email alerts, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, access control list (ACL) support, quality of service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), multiple SSID support, wireless bridge mode, IPv4 support, rogue access point detection, captive portal, RF spectrum analysis, Single Point Setup FeaturesDHCP support, load balancing, VLAN support, syslog support, email alerts, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, access control list (ACL) support, quality of service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), Multiple SSID support, wireless bridge mode, IPv4 support, rogue AP detection, Single Point Setup FeaturesDHCP support, load balancing, VLAN support, Syslog support, emails alert, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, access control list (ACL) support, quality of service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), Multiple SSID support, wireless bridge mode, IPv4 support, rogue AP detection, Single Point Setup
Roaming802.11r (when supported by driver) Roaming802.11r (when supported by driver) Roaming802.11r (when supported by driver) Roaming802.11r (when supported by driver) Roaming802.11r (when supported by driver)
Encryption algorithmWPA, WPA2 Encryption algorithmWPA, WPA2 Encryption algorithmWPA, WPA2 Encryption algorithmWPA, WPA2 Encryption algorithmWPA, WPA2
Authentication methodRADIUS, Radio Service Set ID (SSID) Authentication methodRADIUS, Radio Service Set ID (SSID) Authentication methodRADIUS, Radio Service Set ID (SSID) Authentication methodRADIUS, Radio Service Set ID (SSID) Authentication methodRADIUS, Radio Service Set ID (SSID)
Compliant standardsIEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, Wi-Fi Protected Setup Compliant standardsIEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, Wi-Fi Protected Setup Compliant standardsIEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, Wi-Fi Protected Setup Compliant standardsIEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, Wi-Fi Protected Setup Compliant standardsIEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, Wi-Fi Protected Setup

Antenna

TypeInternal integrated TypeInternal integrated TypeInternal integrated TypeInternal integrated TypeInternal integrated
Antennas4 Antennas4 Antennas4 Antennas10 Antennas5
DirectivityDipole antennas DirectivityDipole antennas DirectivityDipole antennas DirectivityDipole antennas DirectivityDipole antennas
Gain level3.61 dBi on 2.4 GHz; 6.23 dBi on 5 GHz Gain level1.99 dBi maximum on 2.4 GHz; 1.28 dBi max on 5 GHz Gain level2.98 dBi maximum on 2.4 GHz; 3.55 dBi max on 5 GHz Gain level3.7-5.0 dBi Gain level3.7-5.0 dBi
